Executive Summary: Giga-Scale Packaging at the Forefront

The evolution of giga-scale integrated circuit (IC) packaging solutions is rapidly reshaping the semiconductor landscape, positioning advanced packaging technologies at the forefront of innovation for 2025 and beyond. As device complexity and transistor counts soar into the hundreds of billions, traditional monolithic scaling faces physical and economic constraints. In response, the semiconductor industry is accelerating investments in novel packaging architectures—such as 2.5D/3D integration, chiplet-based design, and advanced substrate technologies—to address performance, power, and yield challenges at giga-scale integration.

Leading companies are driving this transformation with significant announcements and roadmap milestones. TSMC continues to expand its System on Integrated Chips (SoIC) and CoWoS (Chip-on-Wafer-on-Substrate) platforms, enabling high-density 3D stacking and multi-die integration for AI, high-performance computing (HPC), and datacenter applications. In 2025, TSMC’s next-generation CoWoS and SoIC solutions are slated for volume production, supporting chiplet architectures and pushing interconnect densities well beyond 2,000 I/O per mm². Similarly, Intel is advancing its Foveros 3D stacking and EMIB (Embedded Multi-die Interconnect Bridge) technologies, with mass production of Meteor Lake and future AI accelerators leveraging these giga-scale packaging capabilities.

On the materials and substrate front, ASE Technology Holding, the world’s largest outsourced semiconductor assembly and test (OSAT) provider, is scaling up its Fan-Out Wafer-Level Packaging (FOWLP) and 2.5D/3D offerings, focusing on ultra-fine redistribution layers (RDL) and advanced substrates to accommodate giga-scale chip integration. Meanwhile, Amkor Technology is expanding its high-density System-in-Package (SiP) and High-Density Fan-Out (HDFO) lines, targeting AI and high-speed networking markets where giga-scale packaging is critical for bandwidth and power efficiency.

Industry bodies such as SEMI and JEDEC are actively publishing new standards and roadmaps, reflecting the shift towards heterogeneous integration and giga-scale packaging. These standards aim to ensure interoperability and reliability across increasingly complex multi-die and chiplet-based systems.

Looking ahead, giga-scale IC packaging solutions are expected to underpin the next wave of innovation in AI, HPC, and advanced mobile devices. With multi-billion-dollar investments and a strong industry consensus around heterogeneous integration, the 2025–2027 period will likely witness a new era where advanced packaging, not just transistor scaling, becomes the primary enabler for semiconductor performance and system differentiation.

2025 Market Landscape and Key Players

The market landscape for giga-scale integrated circuit (IC) packaging solutions in 2025 is characterized by rapid advancements, fierce competition, and an intensified focus on heterogeneous integration, system-in-package (SiP) technologies, and advanced substrate materials. As semiconductor manufacturers push toward the sub-2nm node, packaging has become a key enabler of device performance, power efficiency, and form factor reduction, driving significant investments and collaboration across the supply chain.

Leading semiconductor foundries and outsourced semiconductor assembly and test (OSAT) providers are at the forefront of giga-scale packaging innovation. TSMC continues to dominate with its 3D Fabric platform, which integrates advanced chiplet and wafer-on-wafer packaging, including CoWoS (Chip-on-Wafer-on-Substrate) and SoIC (System-on-Integrated-Chips) technologies. In 2025, TSMC is scaling its CoWoS capacity to support high-bandwidth memory (HBM) and advanced AI applications, as evidenced by recent expansions at its Zhunan facility. Samsung Electronics is likewise investing heavily in its X-Cube (3D-IC) and I-Cube (2.5D/3D SiP) offerings, targeting giga-scale integration for next-generation data center and HPC processors.

Meanwhile, Intel Corporation is leveraging its EMIB (Embedded Multi-die Interconnect Bridge) and Foveros 3D stacking technologies, with plans to ramp production for high-performance compute and AI accelerators in 2025. The company’s advanced packaging roadmap, highlighted at recent industry events, underscores a transition toward integrated platforms combining logic, memory, and I/O dies in a single package.

Among OSATs, ASE Technology Holding and Amkor Technology are scaling capacity for SiP, fan-out wafer level packaging (FOWLP), and 2.5D/3D integration. ASE’s VIPack platform and Amkor’s High-Density Fan-Out (HDFO) and SLIM/SWIFT technologies are being adopted for advanced applications in AI, automotive, and consumer electronics, with both companies announcing facility expansions and strategic partnerships in Asia and the US.

Material and substrate suppliers such as IBIDEN Co., Ltd. and SHINKO ELECTRIC INDUSTRIES CO., LTD. are crucial to the ecosystem, delivering high-density organic substrates and interposers required for giga-scale packaging. Their investments in manufacturing technology and capacity are vital to meeting the projected surge in demand through 2025 and beyond.

Looking ahead, the giga-scale IC packaging sector is poised for sustained growth, driven by the proliferation of AI workloads, chiplet architectures, and next-generation memory. The convergence of leading-edge foundries, OSATs, and material suppliers will continue to define the competitive landscape, with 2025 marking a pivotal year for technological deployment and market share realignment.

Breakthrough Technologies in Giga-Scale IC Packaging

Giga-scale integrated circuit (IC) packaging, defined by the aggregation of tens of billions of transistors and chiplets into unified systems, is entering a phase of rapid innovation in 2025. Meeting the performance, power, and density requirements of advanced nodes is driving breakthroughs in packaging solutions such as 2.5D and 3D integration, wafer-level packaging, and advanced substrate technologies.

One of the most prominent breakthroughs is heterogeneous integration, where multiple chiplets fabricated with diverse process technologies are combined in a single package. Intel Corporation has accelerated the deployment of its EMIB (Embedded Multi-die Interconnect Bridge) and Foveros 3D stacking technologies, enabling high-bandwidth interconnects and vertical stacking of logic and memory for products expected to scale well beyond 100 billion transistors in the coming years. In 2025, Intel’s roadmap highlights aggressive expansion of Foveros Direct, enabling direct copper-to-copper bonding at finer pitches to support giga-scale integration.

Similarly, Taiwan Semiconductor Manufacturing Company (TSMC) is advancing its 3DFabric platform, combining CoWoS (Chip-on-Wafer-on-Substrate) and SoIC (System on Integrated Chips) for large-scale logic-memory integration. TSMC’s CoWoS-L, introduced for high-performance computing (HPC) and AI accelerators, supports interposers with reticle sizes exceeding 2500mm2, vital for giga-scale applications. The company’s 2025 roadmap emphasizes higher bandwidth, lower latency, and finer bump pitches, pivotal for integrating dozens of chiplets in a single package.

High-density substrate technology is also evolving rapidly. Samsung Electronics is pushing the frontiers with its H-Cube and X-Cube solutions, which allow stacking and interconnection of multiple dies with micro-bump and hybrid bonding. These technologies are being adopted for AI, networking, and datacenter chips where giga-scale ICs are becoming mainstream.

In parallel, Advanced Micro Devices (AMD) has expanded its use of chiplet-based architectures, leveraging advanced packaging to improve performance per watt and yield. AMD’s next-generation EPYC and Instinct accelerators, launching in 2025, showcase the integration of multiple logic and memory dies using state-of-the-art high-density organic substrates and through-silicon vias (TSVs).

Looking ahead, the outlook for giga-scale IC packaging is centered on co-optimization of design, materials, and manufacturing. As AI, HPC, and cloud workloads demand ever-higher integration, collaboration between foundries, OSATs, and substrate suppliers is intensifying. Interconnect density, thermal management, and integration of optical components are key areas of ongoing research, setting the stage for the next generation of giga-scale system-in-package solutions.

Advanced Materials and Manufacturing Innovations

The era of giga-scale integrated circuits (ICs)—where circuits contain tens of billions of transistors—demands transformative advances in packaging materials and manufacturing techniques. As device complexity and density escalate in 2025 and beyond, the semiconductor industry is rapidly evolving to address the thermal, electrical, and mechanical challenges posed by these massive ICs.

Key players are prioritizing substrate innovations, with organic, glass, and advanced silicon-based interposers at the forefront. AMD and Intel Corporation have accelerated the adoption of high-density silicon interposers for chiplet architectures, enabling finer interconnect pitches and higher bandwidth. TSMC’s System-on-Integrated-Chips (SoIC) and CoWoS (Chip-on-Wafer-on-Substrate) packaging platforms—already in high-volume production—are now being extended to support giga-scale logic and high-bandwidth memory integration, with TSMC reporting >1000mm² package sizes and interconnect pitches down to 40μm in its latest offerings.

Thermal management is an acute concern for giga-scale ICs. Samsung Electronics is deploying advanced thermal interface materials (TIMs) and embedded microfluidic cooling into their 2.5D and 3D packaging lines to dissipate heat efficiently. Meanwhile, ASE Technology Holding has commercialized double-sided molded ball grid array (DSMBGA) and fan-out wafer-level packaging (FOWLP) with integrated heat spreaders, targeting AI and high-performance computing markets.

In manufacturing, the trend is toward panel-level packaging (PLP) for greater throughput and cost-effectiveness. Amkor Technology and ASE Technology Holding are both scaling up PLP facilities to accommodate die sizes and volumes required for giga-scale devices, with Amkor reporting significant advances in large area redistribution layer (RDL) technology for 2025 production.

Material advances are equally crucial. Shinko Electric Industries and IBIDEN Co., Ltd. are innovating low-loss, high-density substrates with improved coefficient of thermal expansion (CTE) matching, essential for giga-scale reliability. These companies are developing glass core substrates and new organic build-ups, expected to enter the supply chain in the next few years.

Outlook for 2025 and beyond suggests giga-scale IC packaging will increasingly rely on heterogeneous integration, advanced substrates, and novel cooling. Collaboration among foundries, OSATs, and substrate suppliers will be vital to meet the industry’s scaling roadmap and performance targets.

The transition to giga-scale integrated circuit packaging is fundamentally shaped by advanced integration technologies—chief among them, chiplet architectures, 3D integration, and heterogeneous packaging. As semiconductor manufacturers strive to meet the demands of artificial intelligence, high-performance computing, and data center applications, these approaches are rapidly maturing and being adopted in commercial products through 2025 and beyond.

Chiplet-based designs enable designers to sidestep the yield and scaling limitations of monolithic dies by partitioning complex systems into smaller, function-specific chiplets. This modular approach allows for the integration of logic, memory, analog, and I/O functions using optimal process nodes for each function. Advanced Micro Devices, Inc. (AMD) has demonstrated the viability of this architecture in products such as the EPYC and Ryzen families, and has confirmed continued development of next-generation chiplet-based CPUs and GPUs slated for release in 2025 and beyond.

Three-dimensional (3D) integration further increases functional density by stacking multiple dies vertically, interconnected through advanced through-silicon vias (TSVs) or hybrid bonding. Taiwan Semiconductor Manufacturing Company Limited (TSMC) is expanding its 3DFabric platform, including SoIC (System on Integrated Chips) and CoWoS (Chip-on-Wafer-on-Substrate) solutions, to support giga-scale designs. As of early 2025, TSMC is ramping up mass production of CoWoS modules with substrate sizes surpassing 3,000 mm2 to meet the demands of generative AI accelerators and large-scale inference engines.

Heterogeneous integration brings together chiplets, memory stacks, and specialized accelerators—potentially fabricated with different process nodes and materials—within a single package. Intel Corporation is commercializing its Foveros Direct technology, enabling fine-pitch hybrid bonding for logic-on-logic stacking. This allows for flexible system configurations and power/performance optimization at giga-scale complexity. Samsung Electronics Co., Ltd. is similarly investing in X-Cube and I-Cube platforms, targeting AI, high-bandwidth memory, and next-generation mobile SoCs.

Looking forward, giga-scale packaging solutions are expected to accelerate in adoption, driven by the need to integrate trillions of transistors in data-centric and AI workloads. Industry consortia such as ASE Technology Holding Co., Ltd. are working on standardizing chiplet interfaces, interposers, and power delivery networks to foster ecosystem interoperability. The sector anticipates significant advances in substrate manufacturing, thermal management, and co-design tools to support giga-scale integration through the end of the decade.

Global Supply Chain Challenges and Opportunities

The rapid development of giga-scale integrated circuit (IC) packaging technologies—such as advanced 2.5D/3D ICs, chiplets, and heterogenous integration—is fundamentally reshaping global supply chain dynamics in 2025 and beyond. As the semiconductor industry aims to meet escalating demand for high-performance computing, AI accelerators, and next-generation networking, the complexity and scale of packaging solutions have intensified both challenges and opportunities across the value chain.

One major challenge is supply chain resiliency. The highly specialized equipment, materials (e.g., high-density substrates, advanced underfills), and precision process controls required for giga-scale packaging concentrate risk among a small group of suppliers. For example, TSMC and Intel have both expanded advanced packaging capacity, but global substrate shortages and localized disruptions (e.g., geopolitical tensions, logistics bottlenecks) persist as significant concerns. To alleviate these, leading players are investing in geographic diversification and dual sourcing for critical materials and tools.

At the same time, the transition to chiplet architectures and heterogenous integration creates new opportunities for modular supply chain collaboration. The AMD adoption of chiplets in its EPYC and Ryzen processors demonstrates how standardized interfaces and open die-to-die interconnects can enable more flexible sourcing and faster innovation cycles. Consortia such as the Universal Chiplet Interconnect Express (UCIe), whose founding members include Intel, AMD, TSMC, and Samsung Electronics, are driving industry-wide adoption of interoperable solutions, lowering entry barriers for new ecosystem participants.

On the manufacturing side, investments in capacity expansion are underway. TSMC is ramping up its CoWoS and SoIC advanced packaging lines, targeting both increased throughput and finer pitch interconnects to support AI and HPC chips. Intel is scaling up its Foveros Direct and EMIB technologies, and Samsung Electronics is commercializing its X-Cube 3D stacking platform. These moves signal a global race to secure leadership in giga-scale packaging, with significant capital commitments required for substrate, tooling, and automation.

Looking ahead to the next few years, the outlook for giga-scale IC packaging solutions hinges on balancing supply chain robustness with innovation velocity. Collaborative standards, regional investment in advanced packaging infrastructure, and supply chain digitalization (traceability, predictive analytics) will be critical to manage risks and capture emerging market opportunities. As end markets for AI, automotive, and data center chips grow, the ecosystem will likely see tighter integration between foundries, OSATs, substrate suppliers, and EDA tool providers—reshaping the traditional boundaries of the semiconductor supply chain.

Regulatory, Environmental, and Industry Standards Overview

The rapid evolution of giga-scale integrated circuit (IC) packaging solutions is driving significant regulatory, environmental, and industry standards developments as we move through 2025 and into the latter half of the decade. As the complexity of ICs surges—marked by advanced nodes, increased chiplet integration, and heterogeneous packaging—regulatory bodies and industry consortia are updating frameworks to address emerging challenges in safety, sustainability, and interoperability.

Environmental regulation remains a focal point, with giga-scale packaging processes demanding more attention to materials management and lifecycle impacts. The European Union’s Restriction of Hazardous Substances (RoHS) directive continues to shape material choices, pushing manufacturers toward lead-free and halogen-free packaging. Meanwhile, the industry is responding to the EU’s Green Deal and circular economy strategies by innovating in recyclable substrate materials and low-emission manufacturing processes. For example, Infineon Technologies AG has highlighted its commitment to reducing the environmental impact of packaging through energy-efficient production and the use of recycled materials in its advanced IC packages.

In North America and Asia, regulatory alignment is seen as critical to supply chain resilience and global market access. Organizations such as the SEMI and the JEDEC Solid State Technology Association are working with manufacturers to harmonize packaging standards, focusing on reliability, thermal management, and electrical performance as IC densities climb. The recently updated JEDEC standards for advanced packaging outline requirements for giga-scale solutions, including substrate size, power delivery, and signal integrity, ensuring cross-vendor compatibility and supporting rapid ecosystem growth.

The industry is also accelerating the adoption of sustainability and transparency frameworks. Intel Corporation has pledged to achieve net-zero greenhouse gas emissions across its global operations by 2040, which includes optimizing packaging processes and materials for giga-scale devices. Similarly, Taiwan Semiconductor Manufacturing Company (TSMC) publishes annual sustainability reports, detailing reductions in water and chemical use in its advanced packaging facilities—an increasingly important factor as giga-scale solutions require more resource-intensive processes.

Looking ahead, the regulatory landscape is expected to tighten further as governments and industry bodies introduce stricter requirements for lifecycle assessment, carbon disclosure, and material safety in giga-scale IC packaging. These evolving frameworks will shape investment and innovation, compelling manufacturers to balance performance demands with sustainability and compliance as the industry approaches the exascale era.

Market Forecasts and Investment Outlook to 2029

The market for giga-scale integrated circuit (IC) packaging solutions is poised for robust expansion through 2029, driven by escalating demand for high-performance computing, artificial intelligence, data centers, and advanced mobile devices. Giga-scale packaging—encompassing technologies capable of supporting billions of transistors and ultra-high I/O density—requires innovations in materials, design, and manufacturing, leading to significant capital expenditure and strategic investments by industry leaders.

As of 2025, major semiconductor manufacturers are rapidly scaling up their advanced packaging capabilities. Taiwan Semiconductor Manufacturing Company (TSMC) has announced aggressive roadmap milestones for its System-on-Integrated-Chips (SoIC) and 3D fabric technologies, with mass production of advanced CoWoS and chiplet-based solutions expected to more than double by 2026. TSMC is investing over $40 billion in new facilities and R&D to support platform scaling for high-bandwidth memory (HBM) and AI accelerators.

Intel Corporation is accelerating its deployment of the Foveros 3D packaging platform, with volume ramp slated for 2025–2026. The company’s recent investments—exceeding $20 billion in new foundries and packaging plants in the U.S. and Europe—are aimed at securing leadership in giga-scale heterogenous integration and enabling next-generation server, networking, and AI products.

Samsung Electronics is expanding its X-Cube (3D integration) and H-Cube (heterogeneous integration) offerings, with multi-billion dollar investments in packaging R&D and production lines. Samsung projects a doubling of demand for giga-scale packaging solutions in high-performance memory and logic ICs by 2027, emphasizing its collaboration with cloud service providers and AI chipset developers.

The global shift to chiplet architectures is further accelerating investment in large substrate manufacturing and advanced interconnects. Amkor Technology, one of the leading outsourced semiconductor assembly and test (OSAT) providers, announced new facilities in Vietnam and Portugal, targeting high-density fan-out and 2.5D/3D packaging for giga-scale designs, with operational capacity expected to come online by 2026.

Looking toward 2029, industry organizations such as the SEMI forecast double-digit compound annual growth rates (CAGR) for advanced packaging, with giga-scale solutions comprising a rapidly increasing share of both total addressable market and capital investment. Key drivers include the proliferation of AI workloads, exascale computing, and the transition to sub-2nm process nodes, all of which demand advanced packaging for power, performance, and form factor optimization.

Competitive Analysis: Strategies of Leading Companies (e.g., intel.com, tsmc.com, amkor.com)

The global race for giga-scale integrated circuit (IC) packaging solutions is intensifying as semiconductor manufacturers and advanced packaging providers pursue innovations to meet demands for higher performance, integration, and energy efficiency. In 2025 and the near future, industry leaders are deploying distinct strategies—ranging from proprietary packaging architectures to strategic capacity expansions—to capture share in the rapidly evolving giga-scale IC market.

Intel Corporation is leveraging its advanced packaging portfolio, including Foveros and EMIB (Embedded Multi-die Interconnect Bridge) technologies, to enable high-density, heterogeneous integration of chiplets for data center, AI, and client computing. The company recently announced large-scale expansions of its advanced packaging capacity in the United States and Europe, with the Ohio facility expected to support giga-scale advanced packaging production by mid-decade. Intel’s 2025 roadmap emphasizes a “systems foundry” approach, integrating advanced packaging as a core differentiator in its IDM 2.0 strategy, and collaborating with ecosystem partners to enable open chiplet interoperability through the UCIe (Universal Chiplet Interconnect Express) standard Intel Corporation.

TSMC, the leading pure-play foundry, continues to expand its proprietary CoWoS (Chip-on-Wafer-on-Substrate) and InFO (Integrated Fan-Out) packaging platforms, which are pivotal for giga-scale ICs powering high-performance computing, networking, and AI accelerators. In 2025, TSMC is ramping up its CoWoS capacity, aiming to double output to address surging demand from hyperscalers and AI chip vendors TSMC. The company is also investing in next-generation packaging technology, such as SoIC (System on Integrated Chips), to facilitate vertical stacking of logic and memory dies, further enhancing system integration density and performance. TSMC’s strategy focuses on close collaboration with customers to co-optimize packaging and process nodes, enabling rapid adoption of giga-scale architectures.

Amkor Technology, a global leader in outsourced semiconductor assembly and test (OSAT), is competitively positioning itself by ramping investments in large-scale advanced packaging facilities, particularly in Korea and Vietnam. Amkor’s portfolio includes High-Density Fan-Out, 2.5D/3D IC, and Silicon Interposer solutions, which are increasingly demanded for giga-scale applications in AI, high-performance computing, and automotive sectors. In 2024, Amkor inaugurated its largest advanced packaging factory in Bac Ninh, Vietnam, with plans to scale production capacity through 2025 and beyond Amkor Technology. Amkor’s strategy emphasizes supply chain resilience, global footprint, and technology partnerships to deliver scalable giga-scale solutions for a diverse customer base.

Across these leaders, the outlook for giga-scale IC packaging is marked by aggressive capacity investments, ecosystem collaborations, and continuous innovation in packaging architectures—positioning the sector for robust growth as demand for giga-scale integration accelerates through the latter half of the decade.

As the semiconductor industry advances toward giga-scale integration—where a single package can contain tens of billions of transistors and a multitude of heterogeneous components—packaging technology has emerged as a pivotal innovation driver. In 2025 and the ensuing years, the future outlook for giga-scale integrated circuit (IC) packaging is shaped by surging demand from artificial intelligence (AI), high-performance computing (HPC), advanced networking, and next-generation consumer electronics.

One of the foremost trends is the rapid maturation and scaling of advanced 2.5D and 3D packaging, including chiplet architectures. These approaches allow for partitioning large dies into smaller, yield-friendly chiplets, which can be assembled on high-density interposers or substrates. For instance, Intel Corporation is ramping up its EMIB (Embedded Multi-die Interconnect Bridge) and Foveros 3D stacking technologies, enabling the integration of heterogeneous compute, memory, and I/O chiplets within a single package. Taiwan Semiconductor Manufacturing Company (TSMC) continues to expand its CoWoS (Chip-on-Wafer-on-Substrate) and SoIC (System on Integrated Chips) platforms, supporting ever-larger logic-on-logic and logic-on-memory stacking for data center and AI accelerator applications.

The outlook for 2025 and beyond sees giga-scale packaging solutions addressing not only density and integration, but also power delivery, thermal management, and signal integrity challenges. Advanced Micro Devices, Inc. (AMD) and NVIDIA Corporation are actively pursuing advanced multi-die GPU and accelerator solutions, leveraging high-bandwidth interconnects and innovative substrate materials to support the needs of generative AI and high-throughput computing.

Emerging applications such as edge AI, 6G communications, and automotive autonomy further propel the need for giga-scale packaging. The automotive sector, for example, is demanding highly reliable, thermally efficient, and miniaturized IC packages for sensor fusion and real-time inference, a need being addressed by suppliers like Infineon Technologies AG and Renesas Electronics Corporation.

Looking ahead, industry roadmaps anticipate continued scaling of micro-bump and hybrid bonding pitch, adoption of glass core substrates for extreme signal integrity, and the proliferation of AI-driven design automation for complex packaging layouts. Standardization efforts and ecosystem collaborations—such as the Universal Chiplet Interconnect Express (UCIe) initiative—are expected to accelerate interoperability and ecosystem growth (Universal Chiplet Interconnect Express Consortium).

In summary, giga-scale IC packaging solutions in 2025 and beyond will be fundamental enablers of next-generation computing, communications, and intelligent edge systems, with innovation focused on density, integration, and holistic system performance.

Sources & References

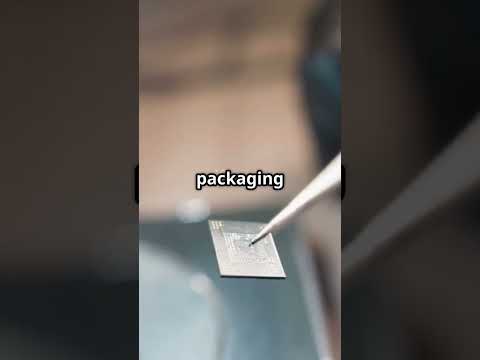

Advance packaging in semiconductors. #semiconductors #technology #future
